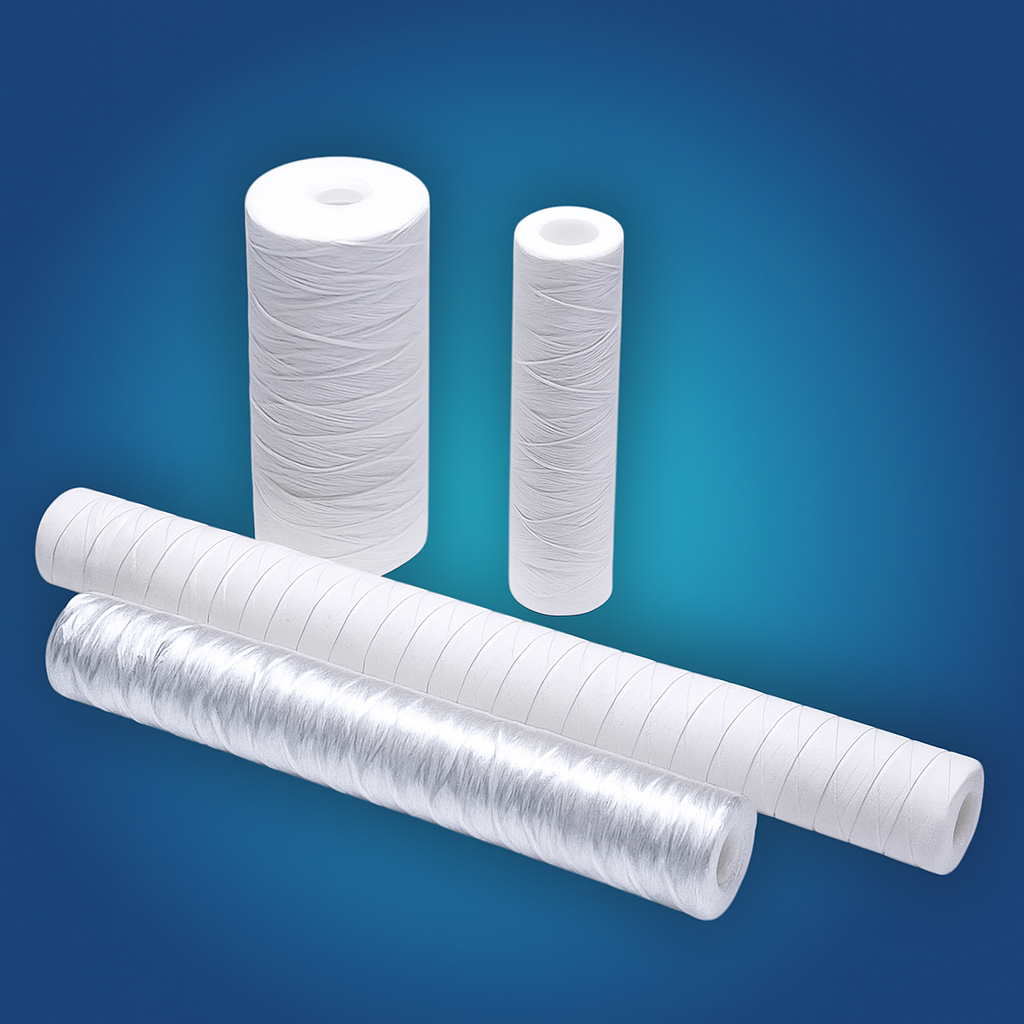

Polypropylene Wound Filter Cartridge
Rs. 0.00
Our String Wound Filter Cartridges provide reliable and economical filtration for applications requiring high dirt-holding capacity and depth filtration. Designed with precision, each cartridge is made by winding a continuous strand of fiber over a rigid core, forming a true gradient density structure for effective particle capture.
Ideal for filtering sediment, rust, sand, silt, and other particulates, these cartridges are widely used in water treatment, chemicals, beverages, and general industrial processes.
Key Features:
| Feature | Details |
|---|---|
| Filter Type | String Wound Cartridge |
| Material | 100% Polypropylene (Core & Media) |
| Micron Rating | 1, 5, 10, 20, 25, 50, 75, 100 µm (customizable) |
| Length Options | 10”, 20”, 30”, 40”, 50” (custom sizes available) |
| Diameter | OD: 63–65 mm; ID: 28–30 mm |
| Core Options | Polypropylene (standard), Stainless Steel (for high temp/pressure) |
| Operating Temperature | Up to 60°C (higher temp with stainless core) |
| Max Differential Pressure | 2.5 bar @ 20°C |
| End Cap Options | DOE (Double Open End), SOE (Single Open End – 222/226 O-ring) |
| Application | Pre-filtration for RO systems, chemicals, food & beverage, paints, etc. |
| Function | Depth filtration – captures particles throughout the media |
| Certifications | FDA-compliant materials (optional), NSF (on request) |
Applications:
-
🏭 Industrial Process Water
-
🍶 Food & Beverage Pre-filtration
-
🧪 Chemicals & Petrochemicals
-
🧼 Cosmetics & Pharmaceuticals
-
💦 RO Pre-filtration / Water Purification
-
🏗️ Construction & Metalworking Fluids
