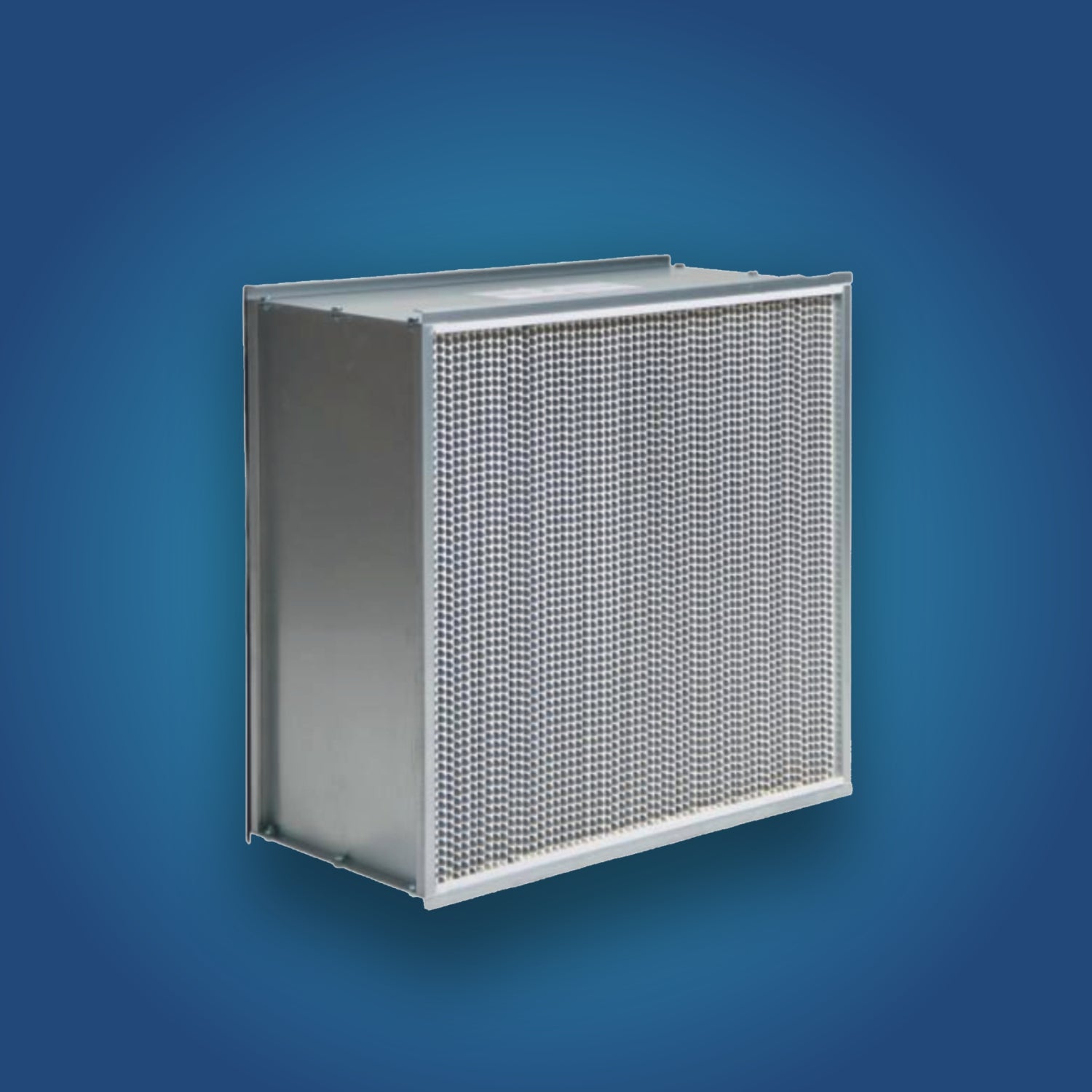

Aluminum Separator HEPA Air Filter
Product Description:-
This HEPA Filter is designed for ultra-fine filtration in controlled environments such as cleanrooms, hospitals, laboratories, and pharmaceutical manufacturing. Constructed with a high-density pleated media housed in a sturdy metal frame, it effectively captures 99.97% of airborne particles as small as 0.3 microns, including dust, allergens, bacteria, and other contaminants. The rigid casing ensures durability, low resistance to airflow, and consistent filtration performance, even under demanding operating conditions.
Key Feature:-
| Feature | Details |
|---|---|
| Filtration Efficiency | ≥ 99.97% at 0.3 microns (can go up to 99.999% for ULPA filters) |
| Filter Media | Micro-glass fiber or synthetic media |
| Frame Material | Aluminum, Galvanized Steel, Stainless Steel |
| Separator | Hot-melt glue, aluminum foil, or no-separator mini-pleat design |
| Construction Type | Rigid box or mini-pleat panel |
| Air Flow Capacity | Ranges from 250 to 2000+ CFM (varies by size & design) |
| Final Pressure Drop | Typically ≤ 500 Pa |
| Temperature Resistance | Up to 120°C (standard), higher for special designs |
| Seal Type | Neoprene, PU, or gel gasket for leak-free installation |
| Applications |
Cleanrooms, pharma, hospitals, electronics, laboratories, HVAC systems |
✅ Applications of Aluminum Separator HEPA Air Filter
✔️ HVAC Systems – For high-volume clean air delivery in commercial and industrial buildings
✔️ Cleanrooms – Used in electronics, semiconductor, and pharmaceutical production environments
✔️ Hospitals & Laboratories – Ensures sterile air by removing airborne contaminants
✔️ Pharmaceutical Manufacturing – Maintains clean air in processing zones and sterile areas
✔️ Food & Beverage Processing – Protects products by filtering airborne particles and bacteria
✔️ Paint Booths & Spray Areas – Controls overspray and maintains air quality
