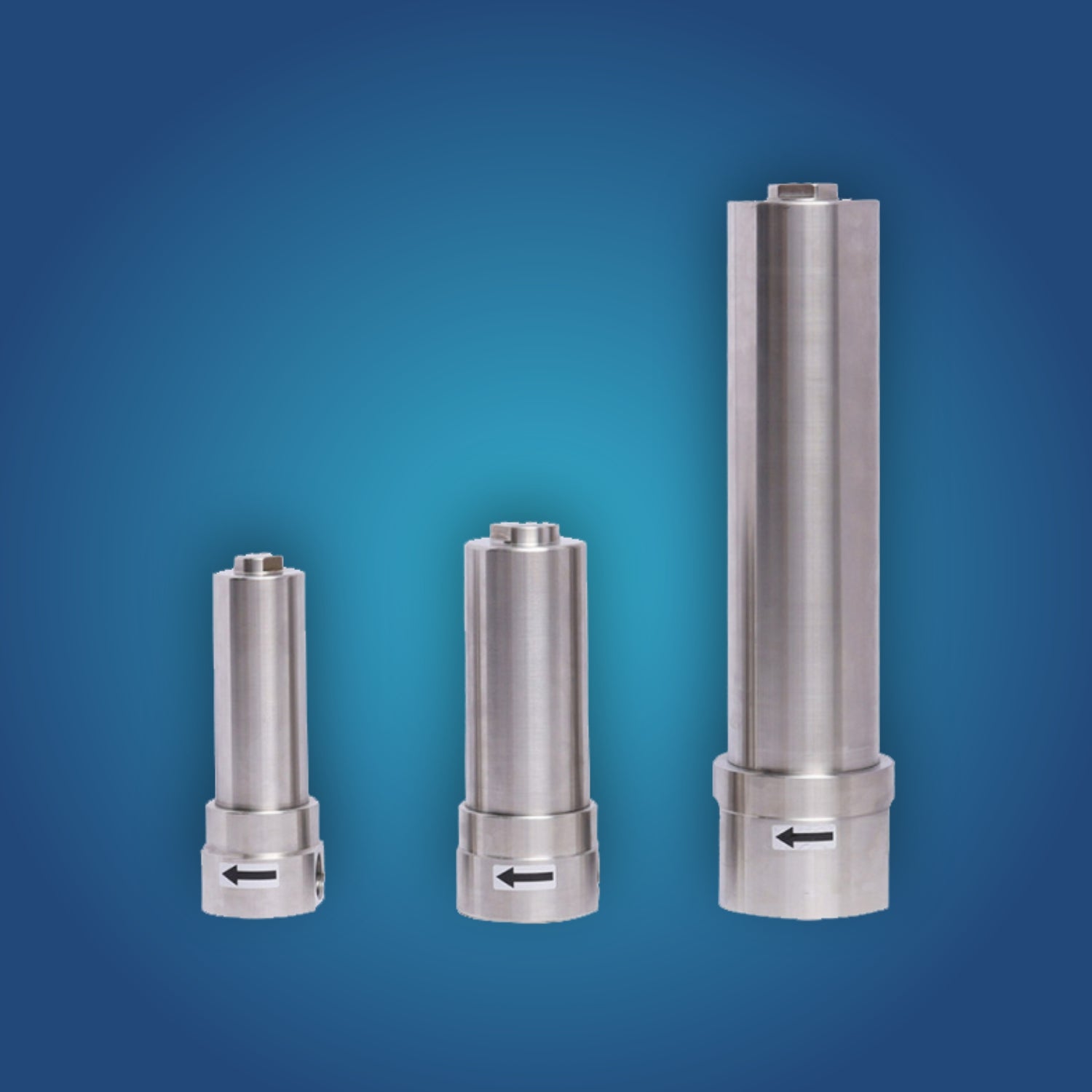

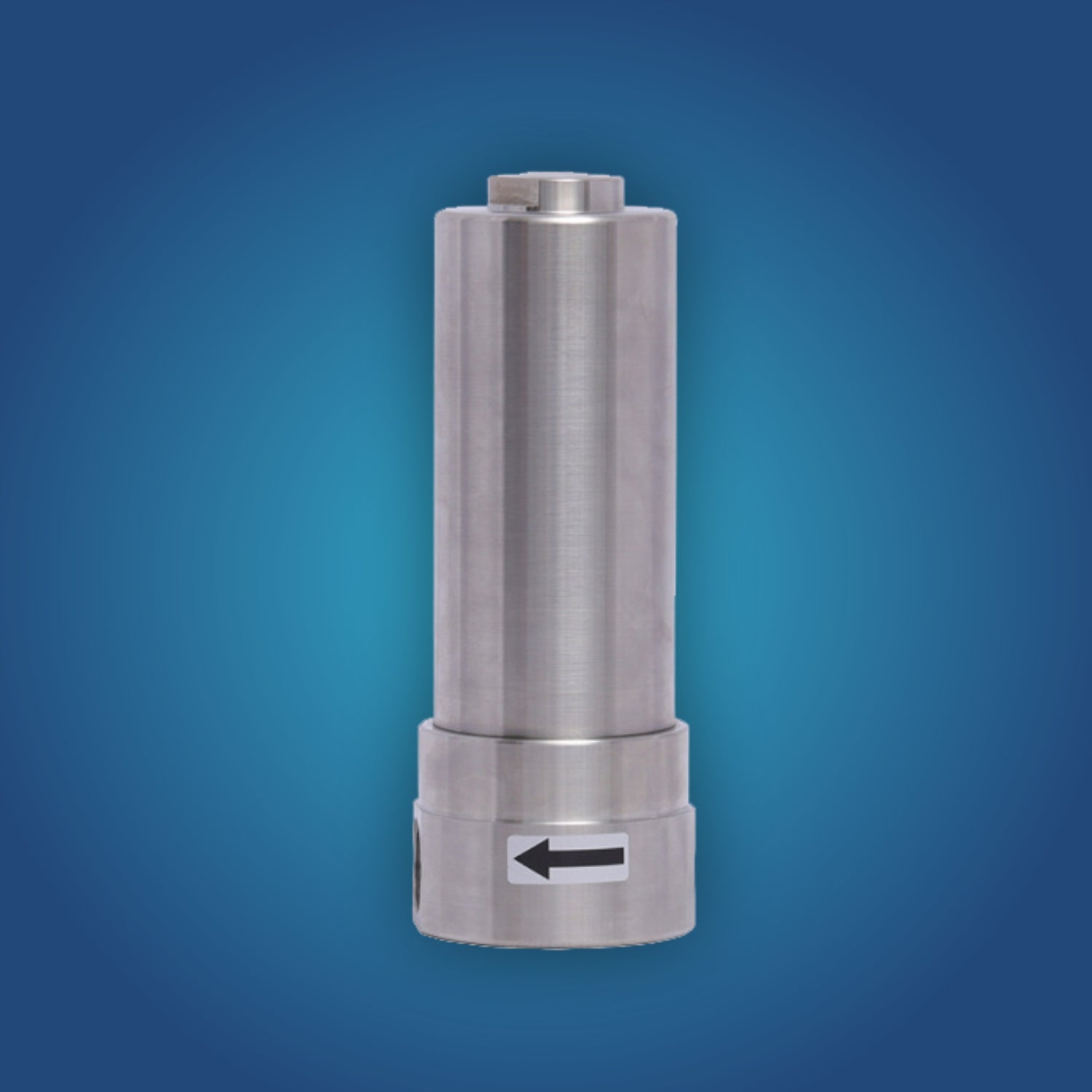

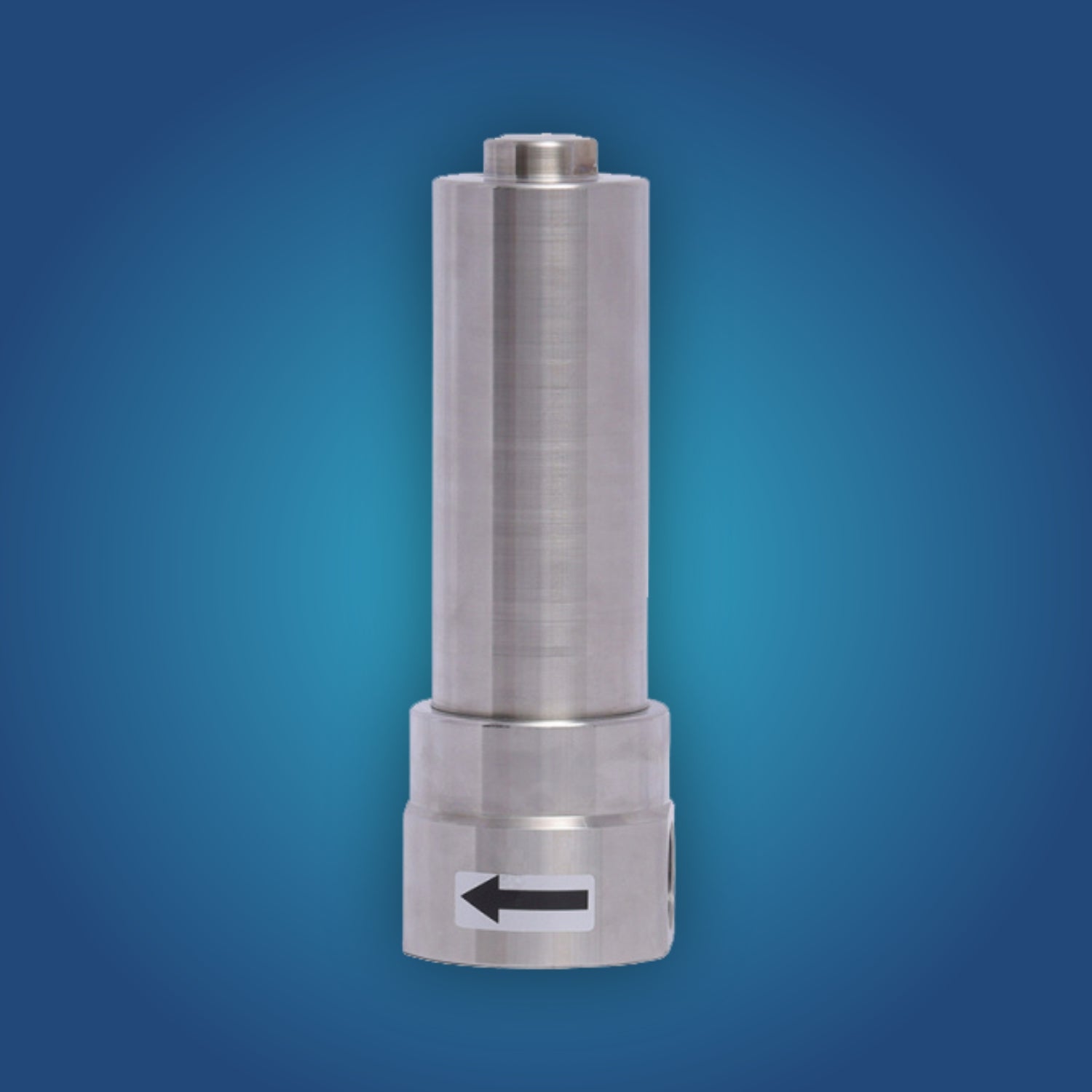

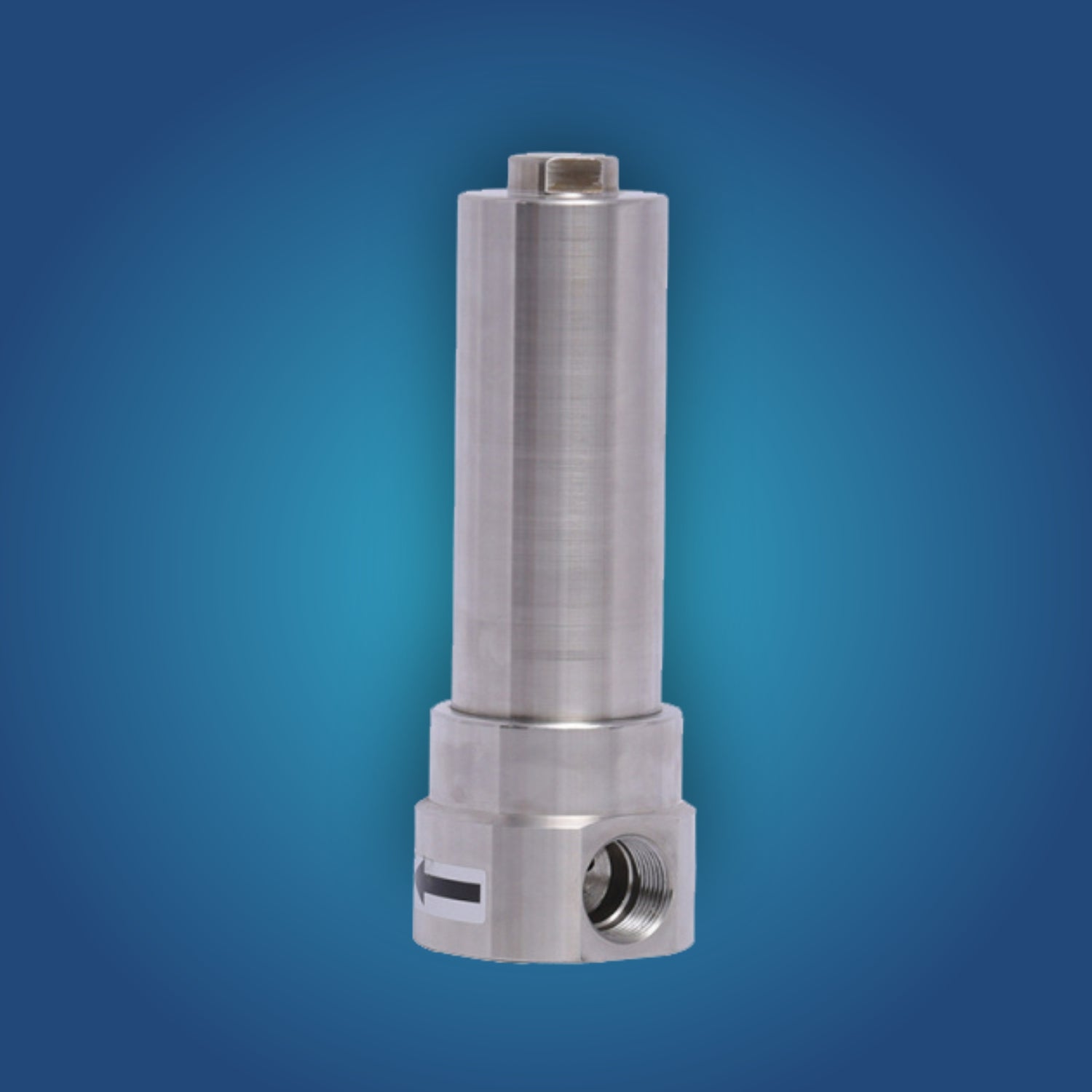

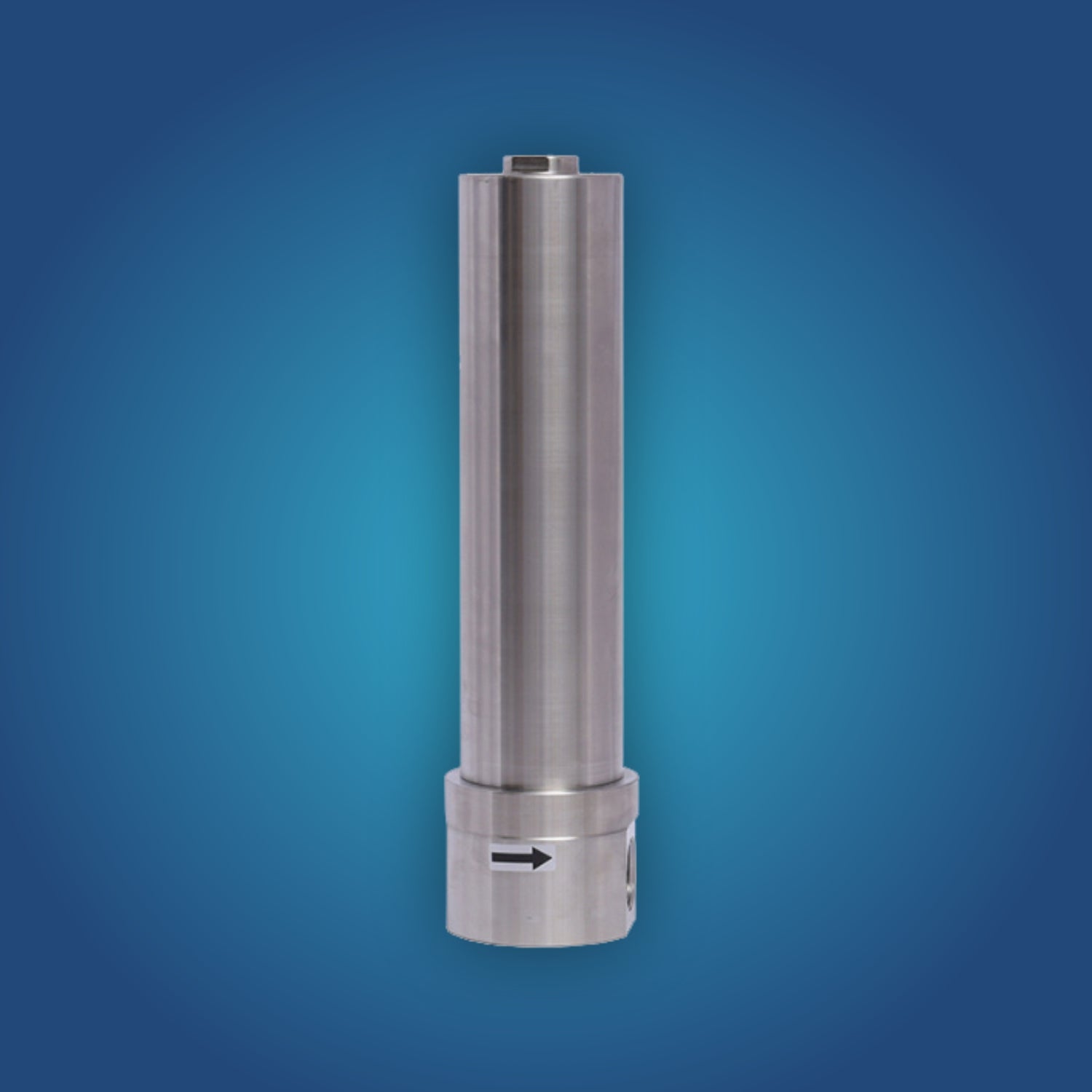

BH Series High Pressure Stainless Steel Precision Filter
The BH Series High Pressure Stainless Steel Precision Filter is a rugged, high-performance filtration solution engineered for use in compressed air and gas systems operating under high pressure. Manufactured from high-grade 304 or 316L stainless steel, this filter is designed to handle demanding industrial environments while ensuring efficient removal of dust, oil aerosols, water, and solid particulates.
Key Features:
| Feature | Details |
|---|---|
| Housing Type | BH Series High Pressure Stainless Steel Precision Filter |
| Housing material | SUS 304 or SUS 316L Stainless Steel |
| Brand | TFF |
| Filtration Grades | C (25 μm), T (5 μm), A (0.01 μm), optional activated carbon |
| Working Pressure | 1.6 – 4.5 MPa (16 – 45 bar); customizable up to 10 MPa |
| Operating Temperature | -20°C to +120°C |
| Port Sizes | 1/4" to 2" or custom |
| Flow Capacity | 1 – 50 Nm³/min (depending on size and pressure) |
| Mounting Orientation | Vertical |
Applications
✅ High-Pressure Compressed Air Systems – Protects equipment in systems operating above standard pressure ranges.
✅ Oil & Gas Industry – Filters air or gas in harsh and corrosive offshore or refinery environments.
✅ Petrochemical Plants – Ensures clean process air in explosive and chemical-heavy environments.
✅ Industrial Gas Applications – Suitable for compressed nitrogen, oxygen (non-oil), and CO₂ filtration.
✅ Food & Beverage Industry – Used in high-pressure pneumatic packaging lines with hygienic requirements.
✅ CNG/LNG Filling Stations – Removes oil and particulates from high-pressure fueling systems.
✅ Power Plants – Supplies clean compressed air to high-pressure pneumatic actuators and instruments.
