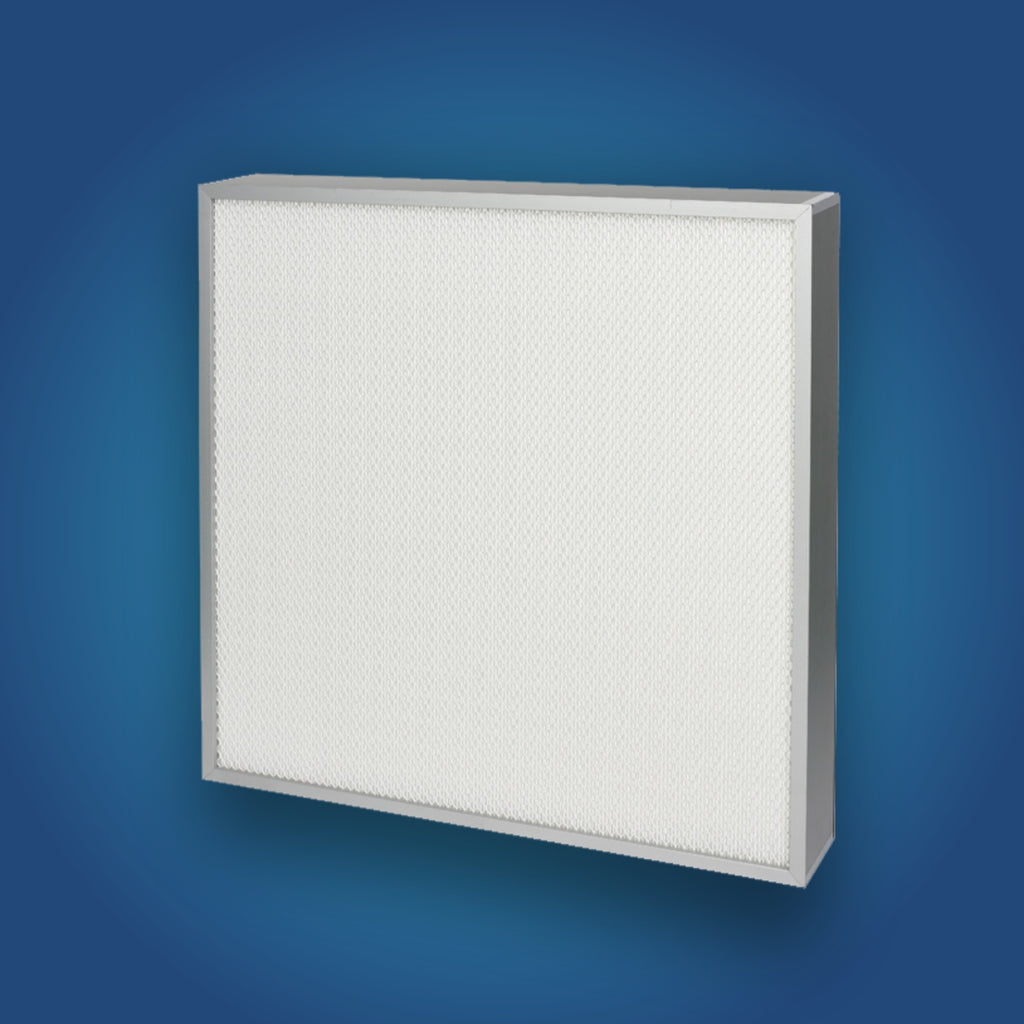

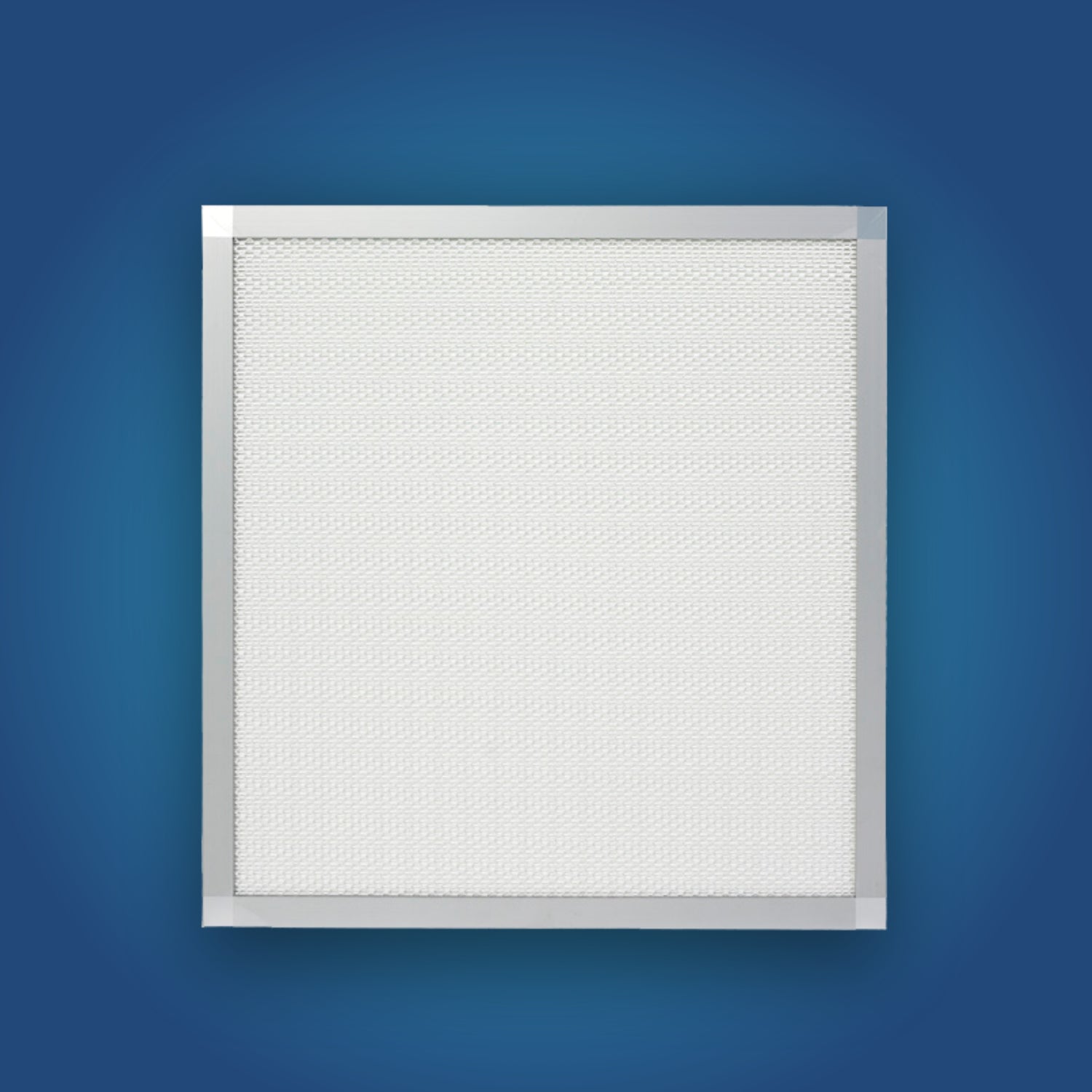

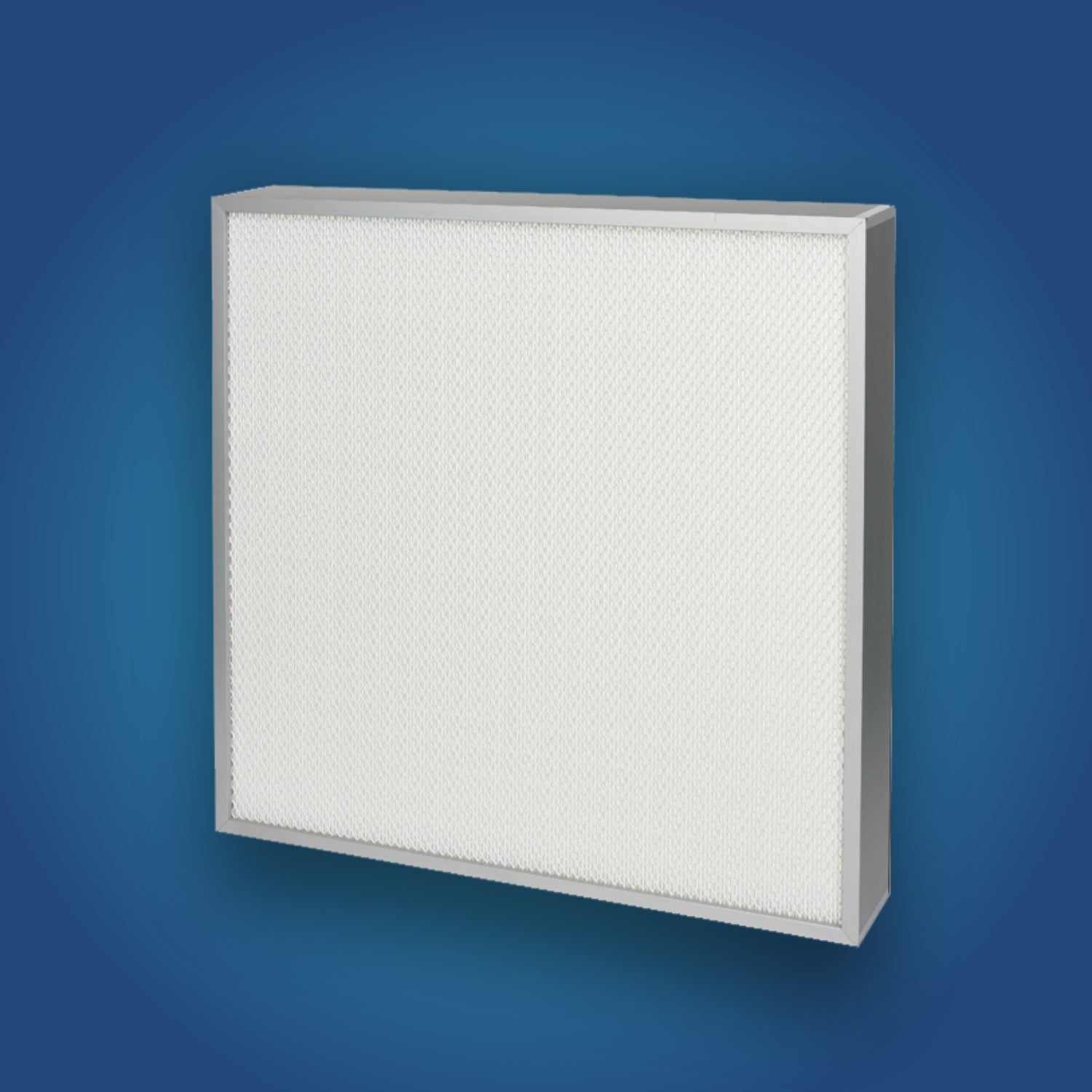

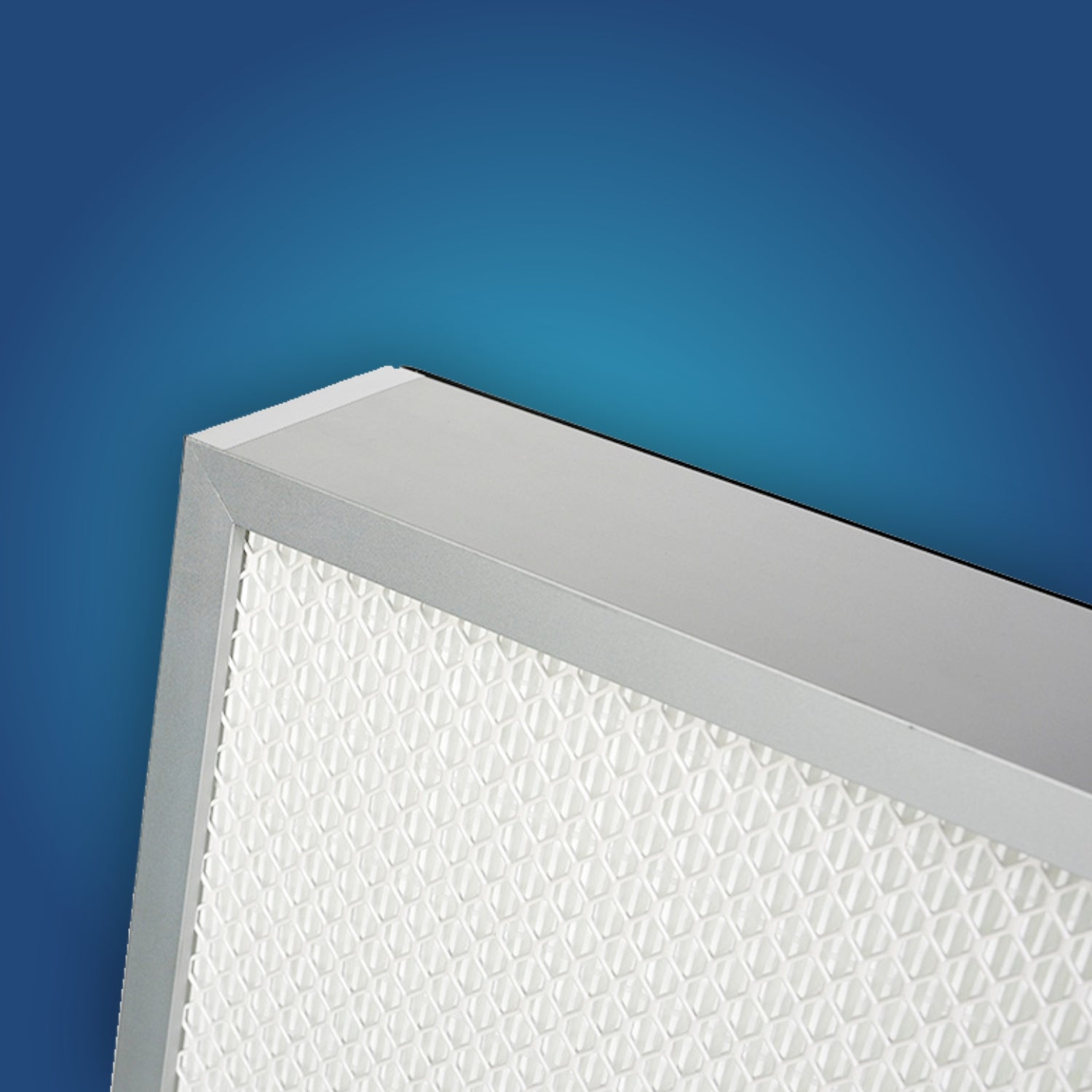

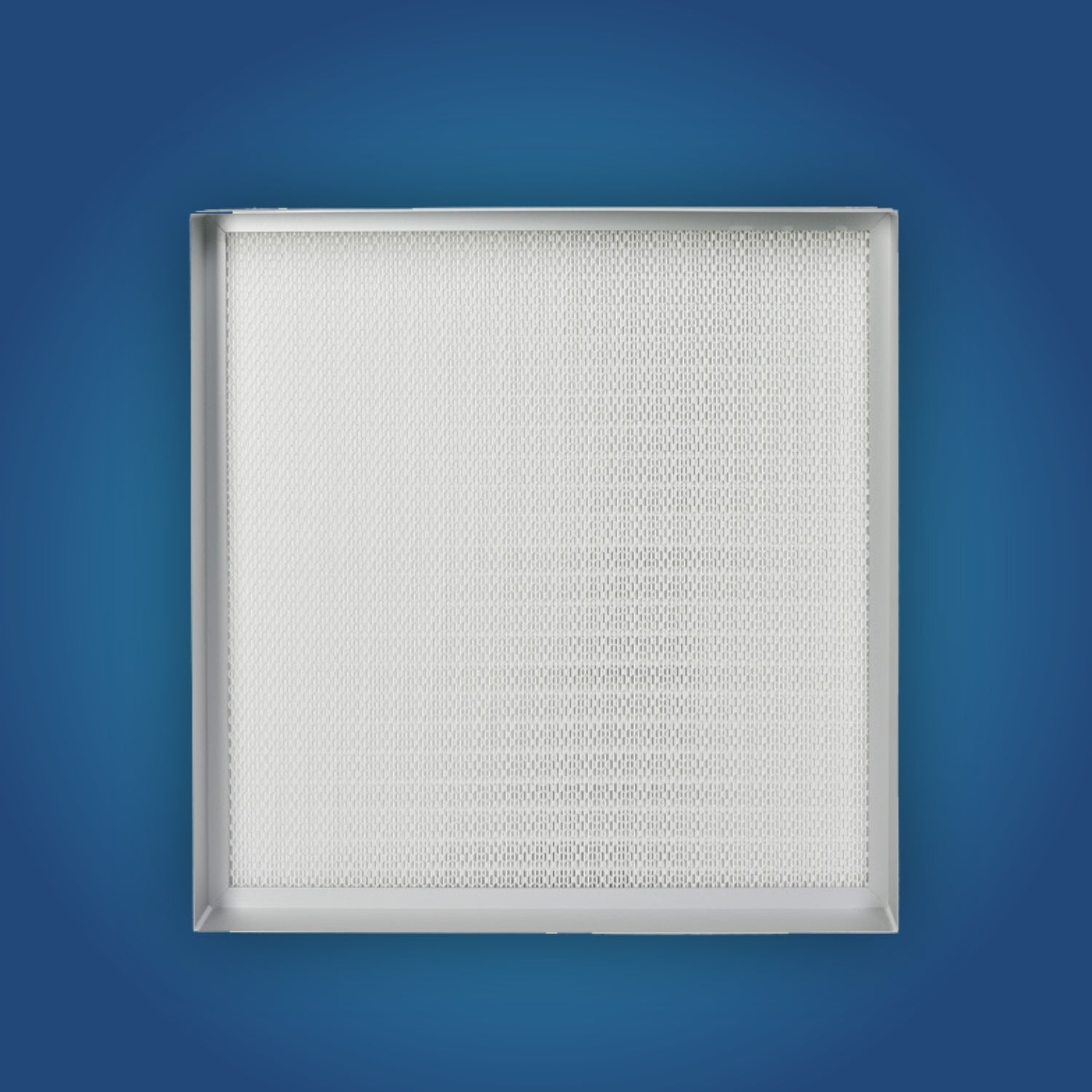

Compact ULPA Filter
Product Description:-
A Compact ULPA (Ultra-Low Penetration Air) Filter is an ultra-high-efficiency air filter designed to remove extremely fine airborne particles and microorganisms from critical environments. With filtration efficiency up to 99.9995% @ 0.12 μm, these filters are ideal for environments requiring the highest levels of air purity, such as pharmaceutical cleanrooms, semiconductor fabs, biotech labs, and hospital isolation areas.
Key Features:-
| Key Feature | Details |
|---|---|
| Filter Type | Compact ULPA Filter |
| Standard Depths | 53 mm, 69 mm, 90 mm (custom available) |
| Airflow Rate | Typically 0.45–0.9 m/s (90–180 FPM) |
| Efficiency | Up to 99.9995% @ 0.12 µm (U15 to U17) |
| Material | Aluminum, stainless steel, or galvanized steel |
✅ Applications of Compact ULPA Filters
-
Semiconductor fabrication plants
-
Pharmaceutical cleanrooms (Grade A/B zones)
-
Biotechnology laboratories
-
Hospital operating rooms and isolation wards
-
Aerospace and defense cleanrooms
-
Flat panel and microelectronic manufacturing
-
Fan filter units (FFUs) and laminar flow cabinets
-
Equipment requiring ULPA-grade air intake
