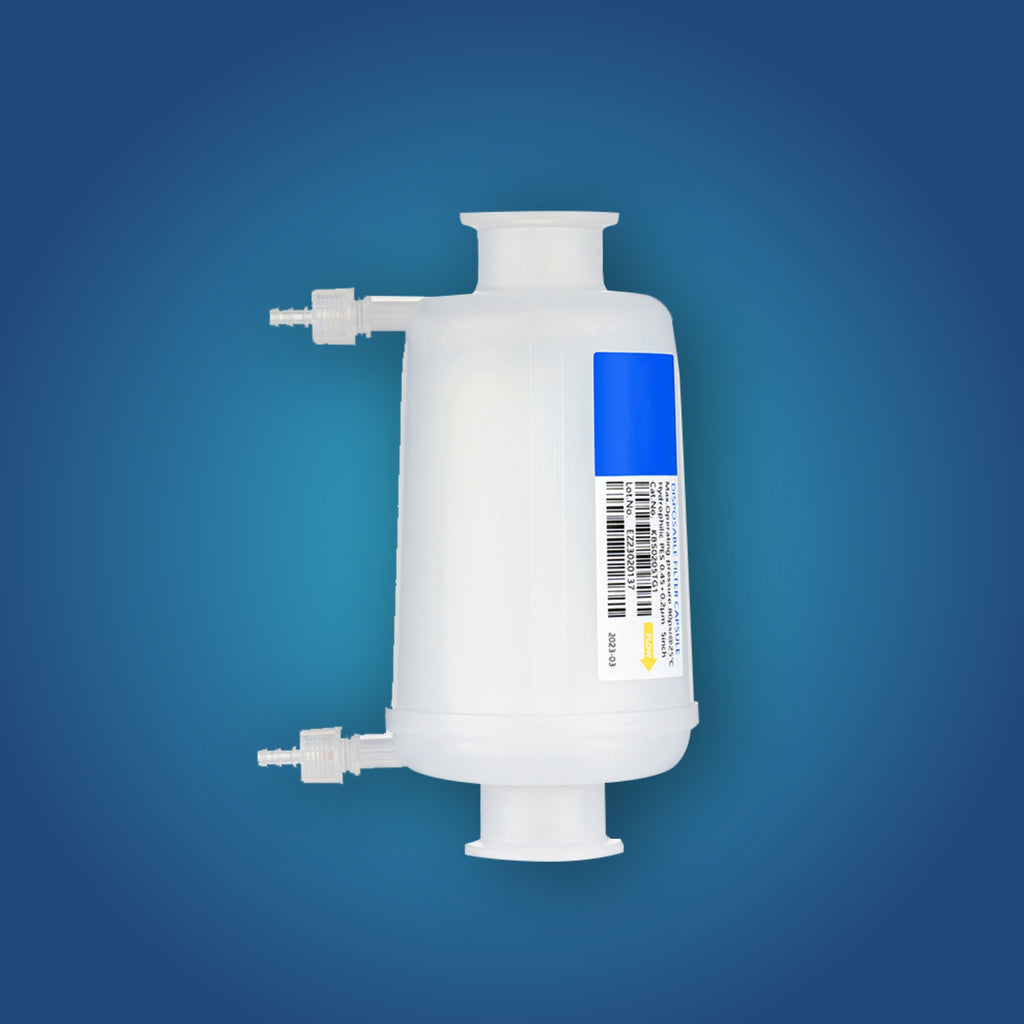

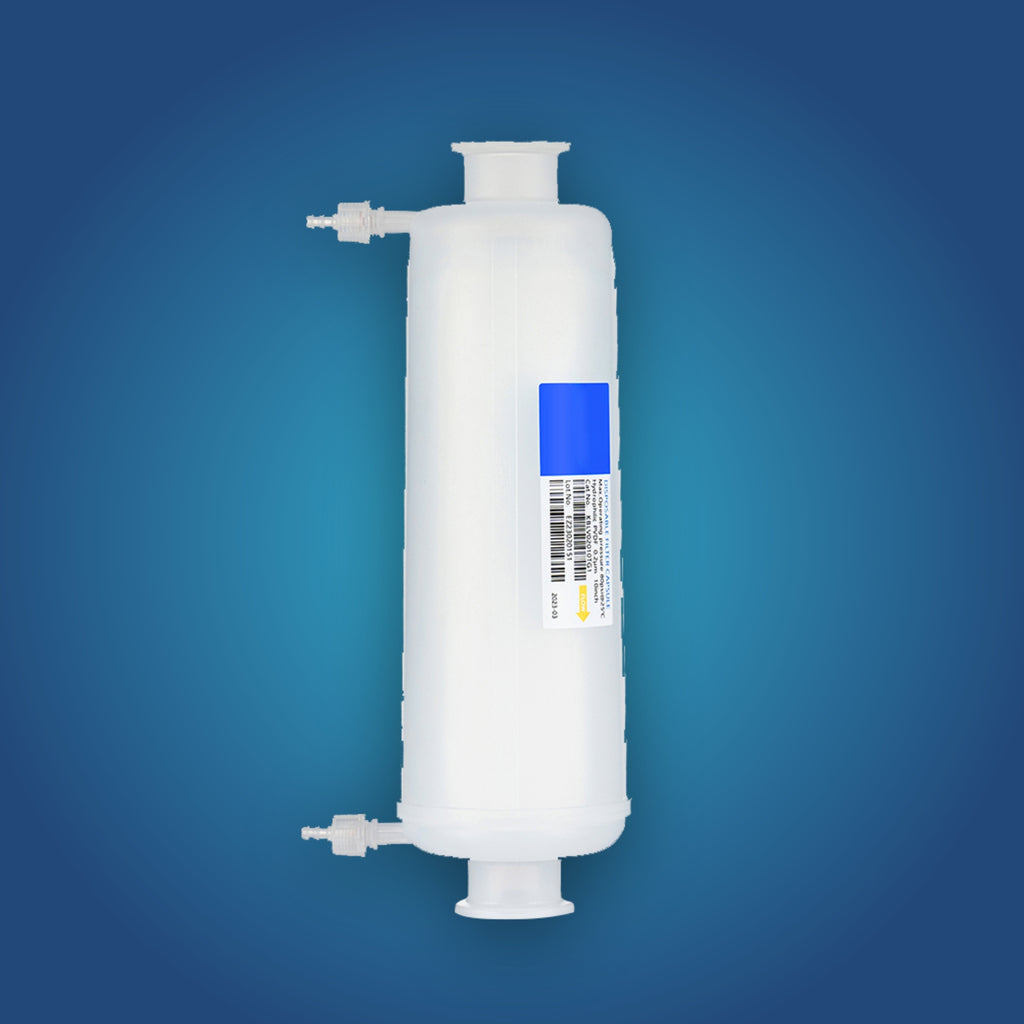

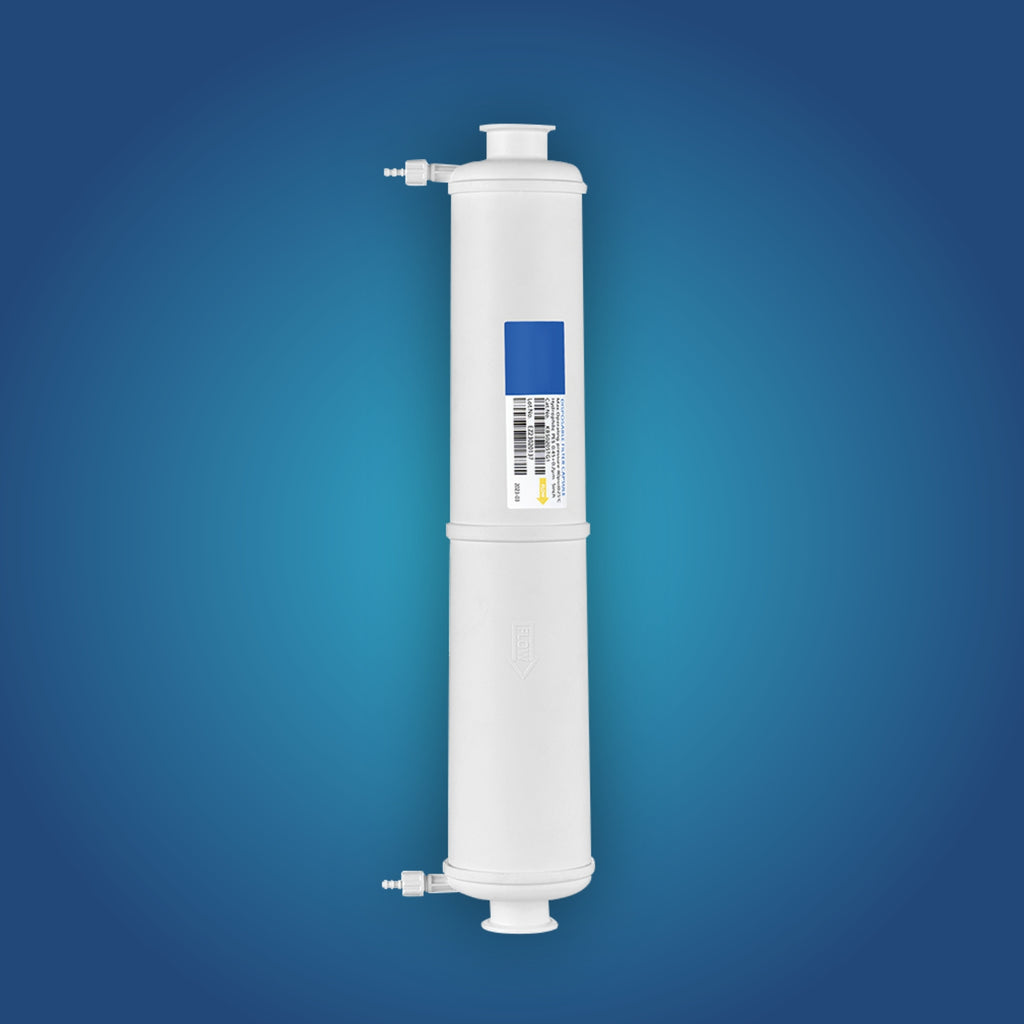

Sterilizing grade capsule filter 20 inch / 10 inch / 5inch KB Series
Product Description:-
Sterilizing Grade Capsule Filter 20 Inch / 10 Inch / 5 Inch KB Series are high-capacity disposable filtration units specially developed for critical sterile filtration applications requiring superior microbial retention, high flow performance, and reliable process safety. Manufactured using premium sterilizing-grade membrane media with robust polypropylene housing, these capsule filters offer low extractables, broad chemical compatibility, and contamination-free operation. The KB Series is ideal for pharmaceutical, biotechnology, food & beverage, chemical, laboratory, and pilot-to-production scale filtration applications where sterile and efficient processing is essential.
| Parameter | Details |
|---|---|
| Product Name | Sterilizing Grade Capsule Filter 20 Inch / 10 Inch / 5 Inch KB Series |
| Filter Media | PES / PTFE / Nylon / PVDF Membrane Options |
| Housing Material | Polypropylene |
| Micron Rating | 0.1 µm, 0.22 µm, 0.45 µm |
| Size Options | 5 Inch, 10 Inch & 20 Inch Capsule Filters |
| Connection Type | Hose Barb / Tri-Clamp / Threaded / Sanitary Connections |
| Maximum Operating Temperature | Up to 80°C |
| Filtration Feature | High-capacity disposable sterile filtration with excellent flow performance and low extractables |
| Applications | Sterile liquid and gas filtration in laboratory, pilot, and production-scale systems |
Applications
✅ Pharmaceutical Industry: Sterile filtration of injectables, vaccines, purified water, and process fluids
✅ Biotechnology Applications: Filtration of culture media, biological products, and fermentation solutions
✅ Food & Beverage Industry: Sterile filtration of beverages, bottled water, syrups, and dairy products
✅ Cosmetics Industry: Filtration of perfumes, lotions, and cosmetic formulations
✅ Pilot & Production Systems: Disposable sterile filtration for scale-up, validation, and manufacturing operations
