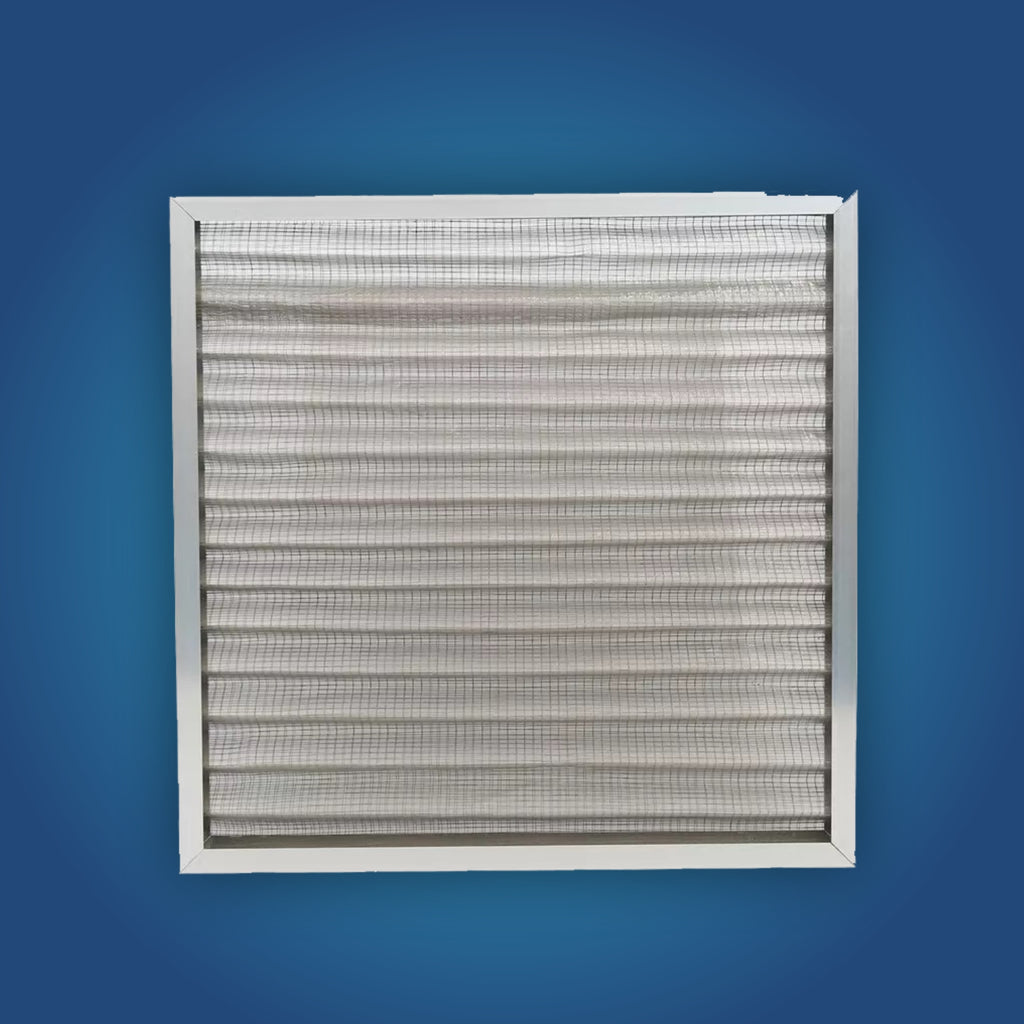

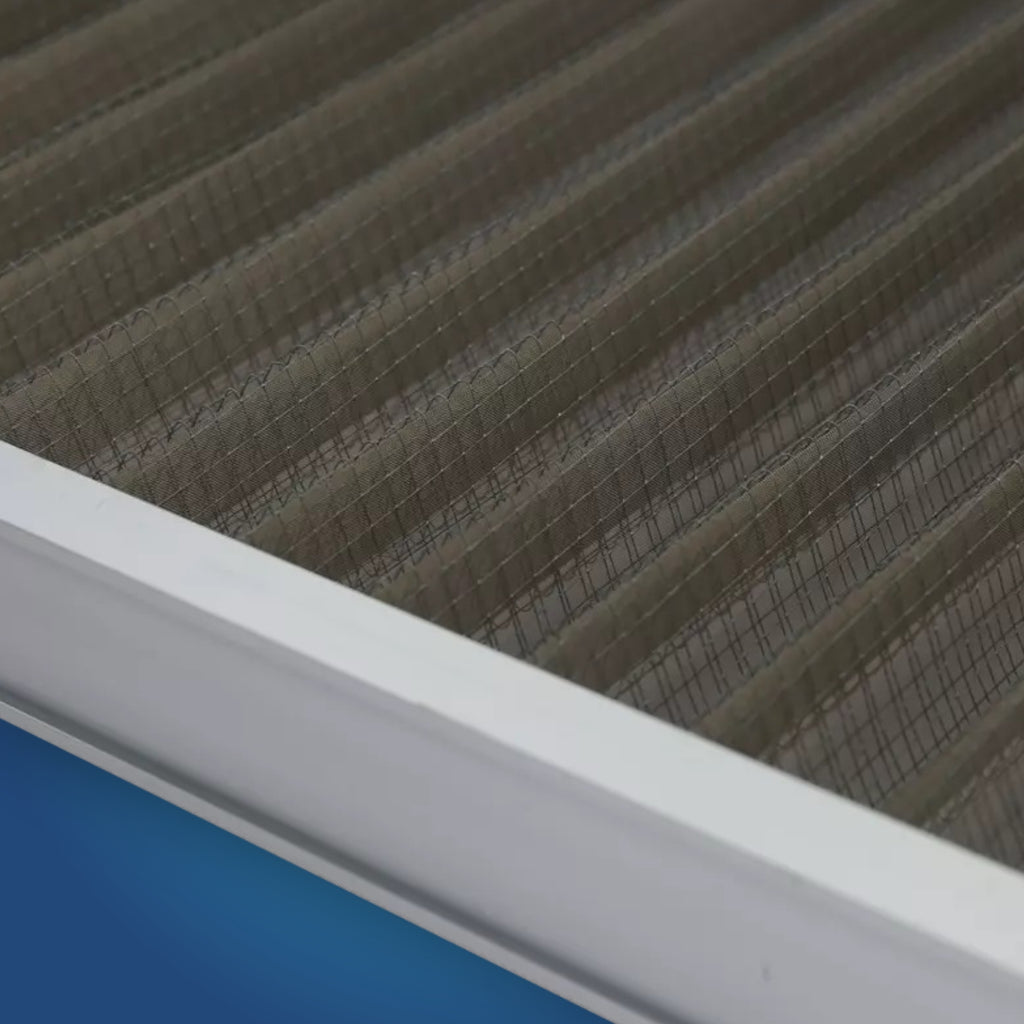

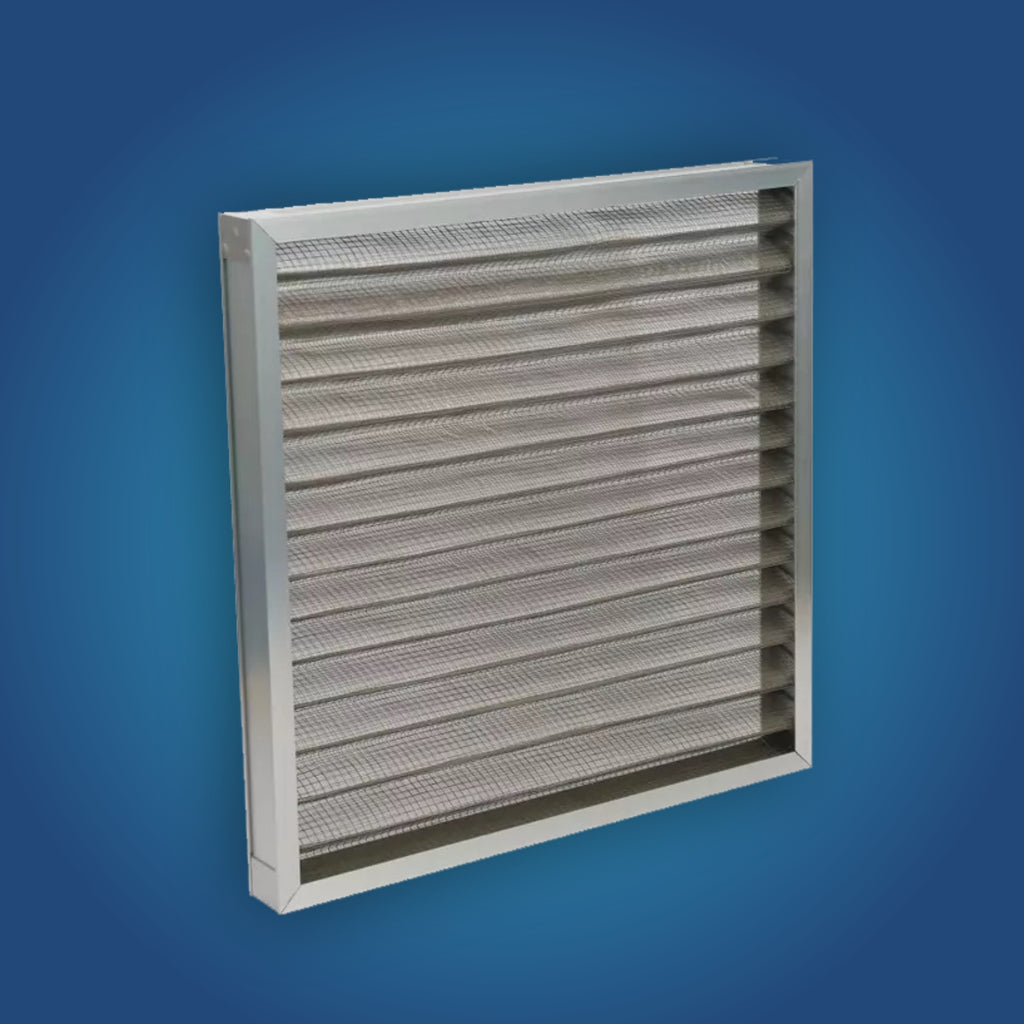

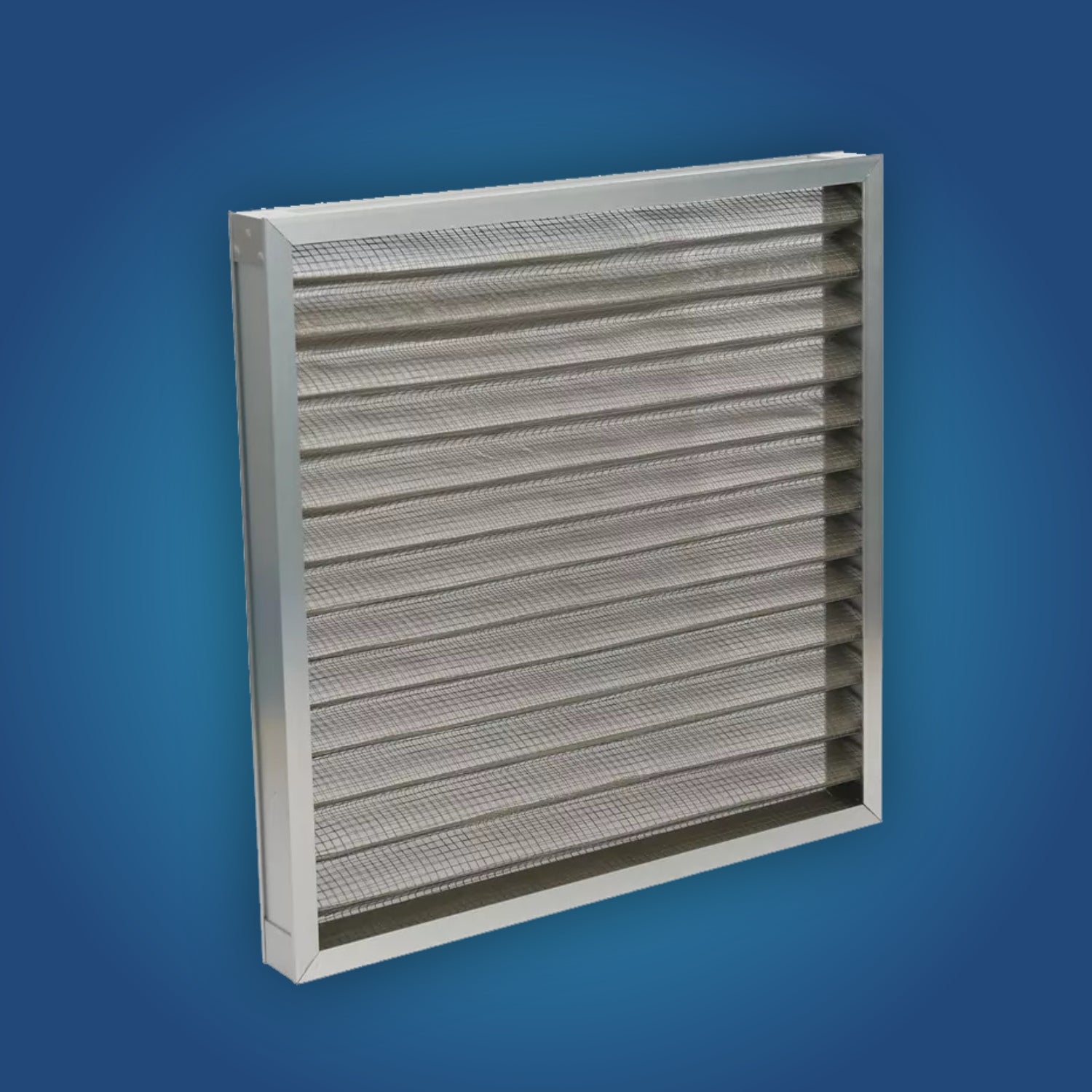

Metal Mesh Pre-Filter
Product Description:-
The Metal Mesh Pre-Filter is a durable, reusable, and washable air filter designed to capture coarse airborne particles such as dust, lint, and debris. Built with a strong metal frame and multi-layered expanded mesh media (usually aluminum, galvanized, or stainless steel), this pre-filter is ideal for heavy-duty environments where high airflow and frequent cleaning are required. Commonly used as a first-stage filter in HVAC systems, AHUs, industrial ventilation, and air intake units, it helps extend the life of downstream filters and improves system efficiency.
Key Features:-
| Key Feature | Details |
|---|---|
| Filter Type | Metal Mesh Pre-Filter |
| Standard Depths | 10 mm, 20 mm, 25 mm (custom sizes available) |
| Airflow Rate | Typically 1.5–3.0 m/s (300–600 FPM) |
| Efficiency | G2 to G4 (EN779) / MERV 4–8 (ASHRAE 52.2) |
| Material | Aluminum, galvanized steel, or stainless steel |
✅ Applications of Metal Mesh Panel Pre Filter
✅ HVAC Systems
Used as a first-stage filter to remove larger particles and protect secondary filters.
✅ Air Handling Units (AHUs)
Prevents dust buildup and extends life of fine or HEPA filters in AHUs.
✅ Industrial Ventilation
Captures airborne debris in factories, warehouses, and production facilities.
✅ Paint Spray Booths
Keeps particulate matter from contaminating painted surfaces.
✅ Commercial Kitchens
Traps grease, smoke particles, and lint in high-humidity and high-heat exhaust areas.
✅ Cleanroom Pre-Filtration
Reduces particulate load before air reaches high-efficiency filters.
✅ Electronics & Server Rooms
Maintains clean airflow to protect sensitive electronics and controls.
