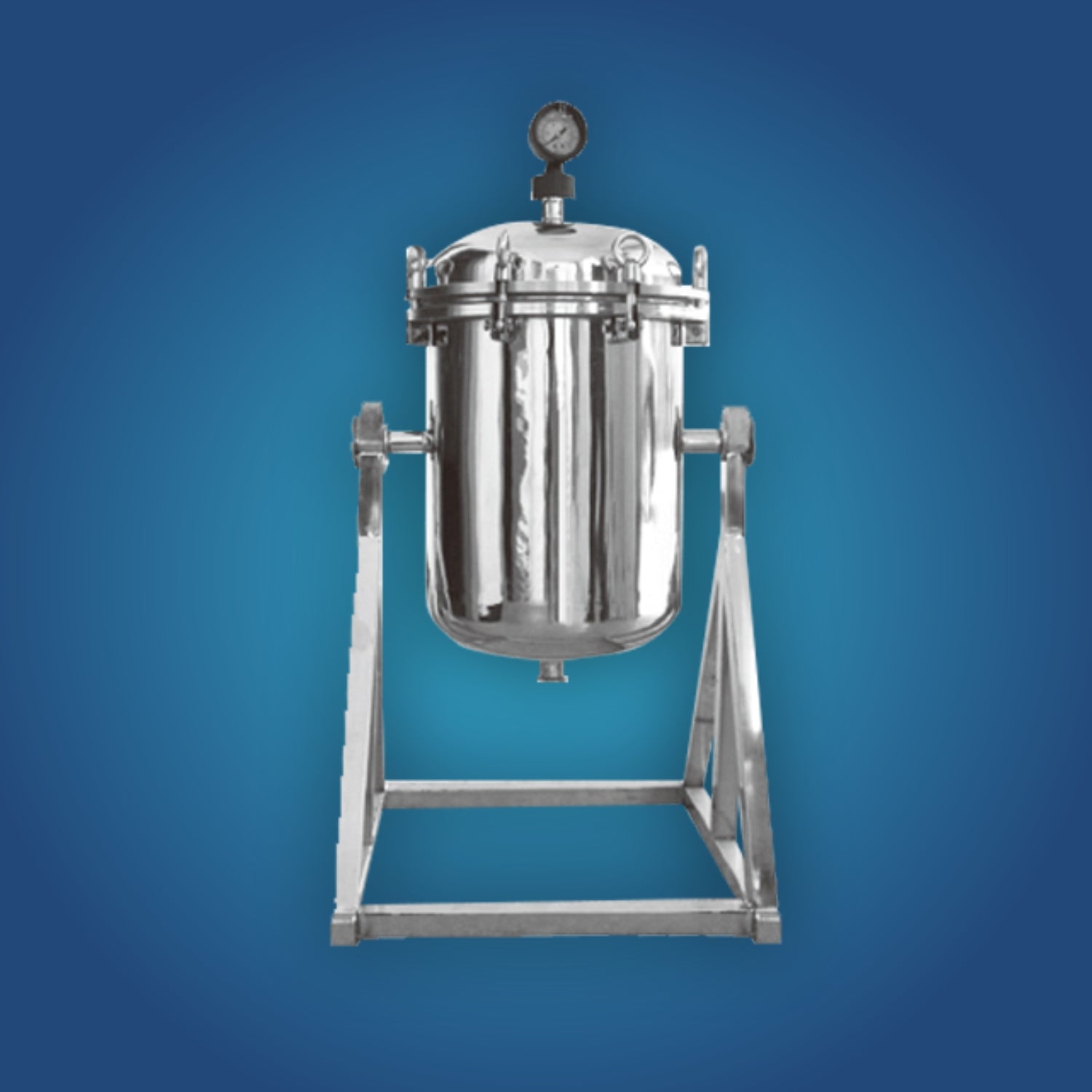

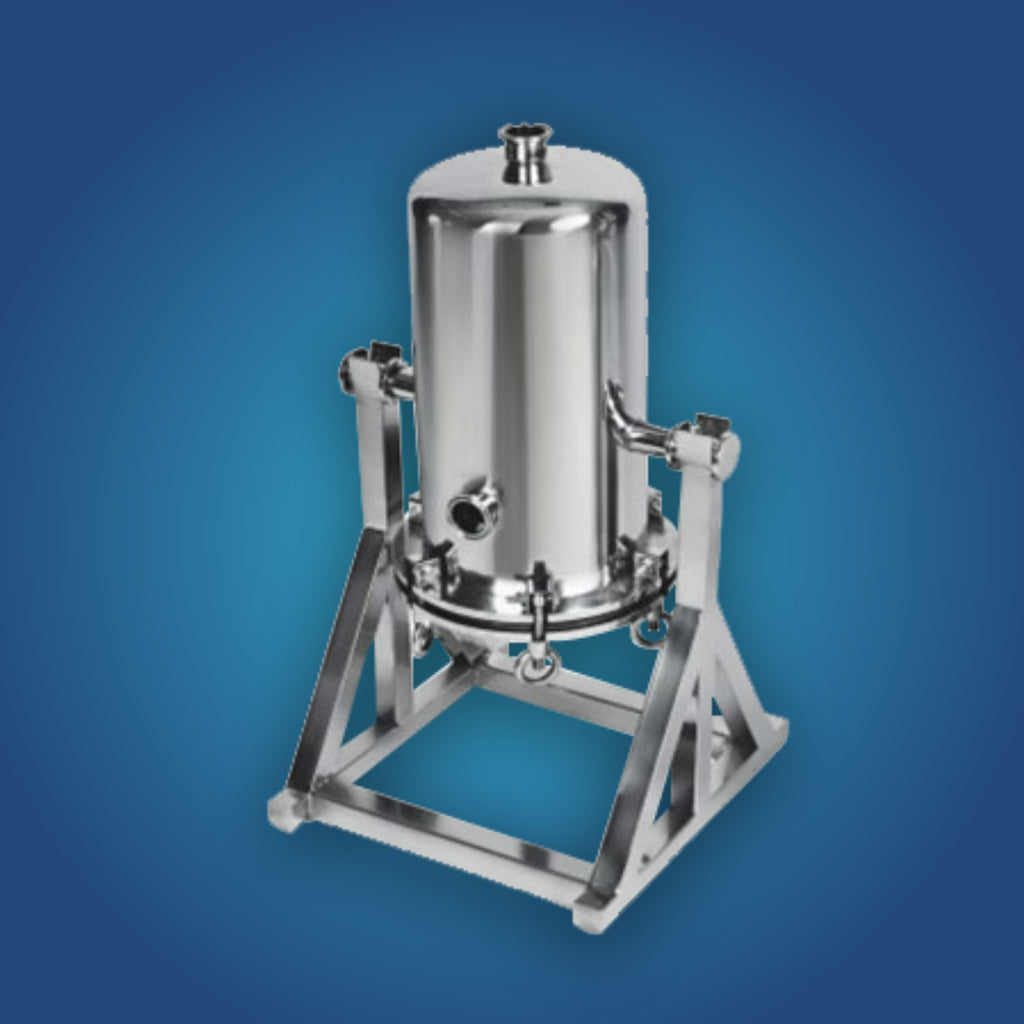

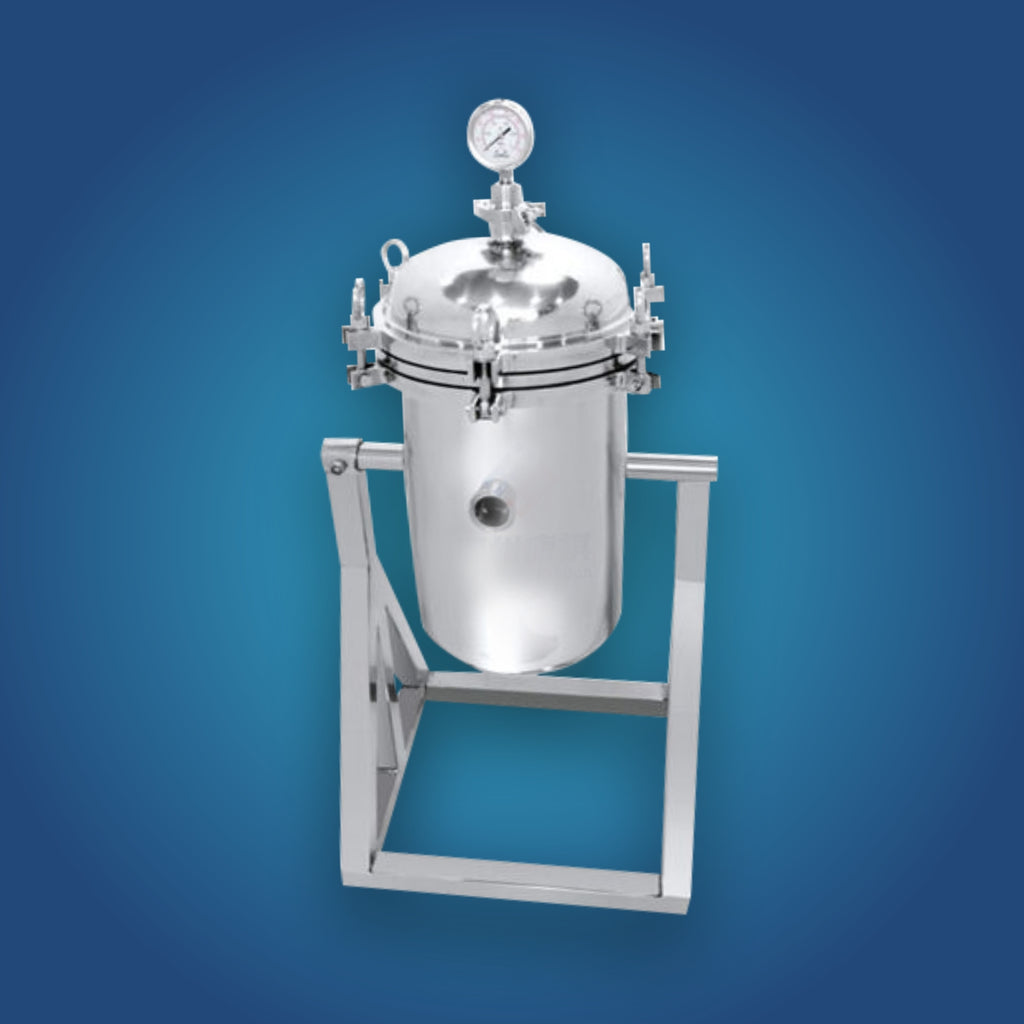

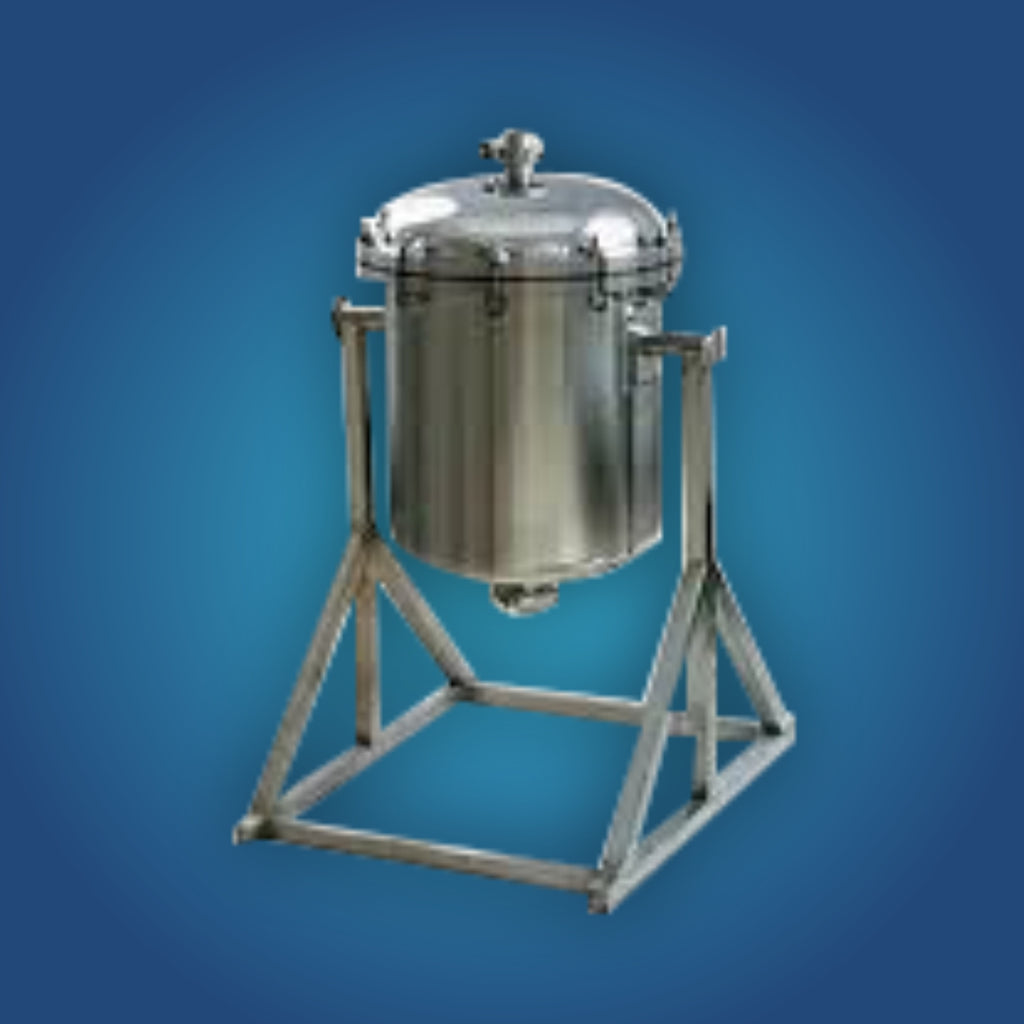

Titanium Rod Filter Housing
The housing of the Titanium Rod Filter Housing is made of 304 or 316L stainless steel, and the titanium metal or stainless steel filter cartridge is used as the filter element, which can achieve a good solid-liquid separation effect by filtering the liquid with high solid content. It has the advantages of high temperature resistance, strong acid, strong alkali, corrosion resistance, and the filter cartridge can be regenerated repeatedly. It is widely used in decarbonization filtration in large infusion and injection production lines.
Key Features:
| Feature | Details |
|---|---|
| Housing Type | Titanium Rod Filter Housing |
| Housing material | Stainless steel 316 L/304 ,SS304, SS316L |
| Brand | TFF |
| Usage | Liquid Filtration |
| Inlet and outlet diameter | DN25-80 flange or quick-connect |
| Design pressure | 0.6MPa |
| Filter element specifications | 5 cores, 7 cores, 9 cores, 16 cores, 20 cores, 24 cores, 31 cores, 40 cores, 45 cores and more; |
| Surface treatment | matte sandblasting or polishing |
| Sealing ring material | silicone rubber, EPDM rubber, fluorine rubber, PTFE-coated fluorine rubber |
| Air flux range | 1-12 m3 /h |
| Maximum working temperature | 150°C |
| Polishing accuracy | Internal Ra < 0.40 μm and external Ra < 0.80 μm |
Applications
✔️ Pharmaceutical and biotech industries
✔️ High-purity chemical filtration
✔️ Solvent and acid filtration
✔️ Gas purification systems
✔️ Food and beverage processing
✔️ Petrochemical and refinery applications
✔️ Water treatment and seawater desalination
✔️ Electronic and semiconductor manufacturing
✔️ High-temperature fluid systems
